ADVANCE2 System

Modular system for combination units


ADVANCE 2 is a complete range of industrial interlocked sockets available from 16 up to 125A. The industrial sockets of this series are ideal for applications in purely industrial environments, while presenting itself with a particularly refined aesthetic design that makes it attractive as well as functional. Convenient sockets to be wired by removing the cover, since all electrical connections can be made on the base where the control components, disconnectors and switches are fixed. All the sockets are equipped with high-performance disconnectors, ergonomic knobs with possiblity of locking by means of a padlock. The availability of modular bases, enclosures and dedicated consumer units allows the realization of modular and flexible combinations.



Switched interlocked sockets outlets.
Without fuse carrier
16A-32A-63A
100-690VAC
IP44 - IP66/IP67
Engineering plastic

Switched interlocked sockets outlets.
With fuse carrier
16A-32A-63A
100-690VAC
IP44 - IP66/IP67
Engineering plastic

Switched interlocked sockets outlets.
With DIN rail (6 modules)
16A-32A-63A
100-690VAC
IP44 - IP66/IP67
Engineering plastic

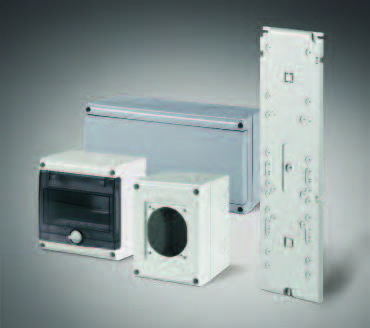

MODULAR SYSTEM
Modular bases
Consumer unit
Enclosure with plain lid
Enclosure with cut-out
IP66
Engineering plastic

Switched interlocked sockets outlets.
Without fuse carrier
125A
100-690VAC
IP66/IP67/IP69
Thermoplastic

Switched interlocked sockets outlets.
WITH DIN RAIL
125A
100-690VAC
IP66/IP67/IP69
Thermoplastic
Catalogue: 16A-32A-63A
Catalogue: 125A
Technical Sheet: Interlocked switch socket outlets
Technical Sheet: Modular system
